產(chǎn)品

產(chǎn)品描述

  • WS7140AD is single channel high-side drivers with current sense analog feedback for automotive applications, the devices are designed to drive 12 V automotive grounded loads througha 3 V and 5 V.

  • WS7140AD integrates advanced protective functions such as load current limitation, overload active management by powe! limitation and overtemperature shutdown with configurablelatch-off. A Fault pin unlatches the output in case of fault odisables the latch-off functionality.

  • A dedicated multifunction multiplexed analog output pin delivers sophisticated diagnostic functions including highprecision proportional load curent sense, supply voltagefeedback and chip temperature sense,in addition to thedetection of overoad and short circuit to ground, short to Vccand OFF-state open-load.

  • A sense enable pin allows OFF-state diagnosis to be disabledduring the module low power mode as well as external senseresistor sharing among similar devices.

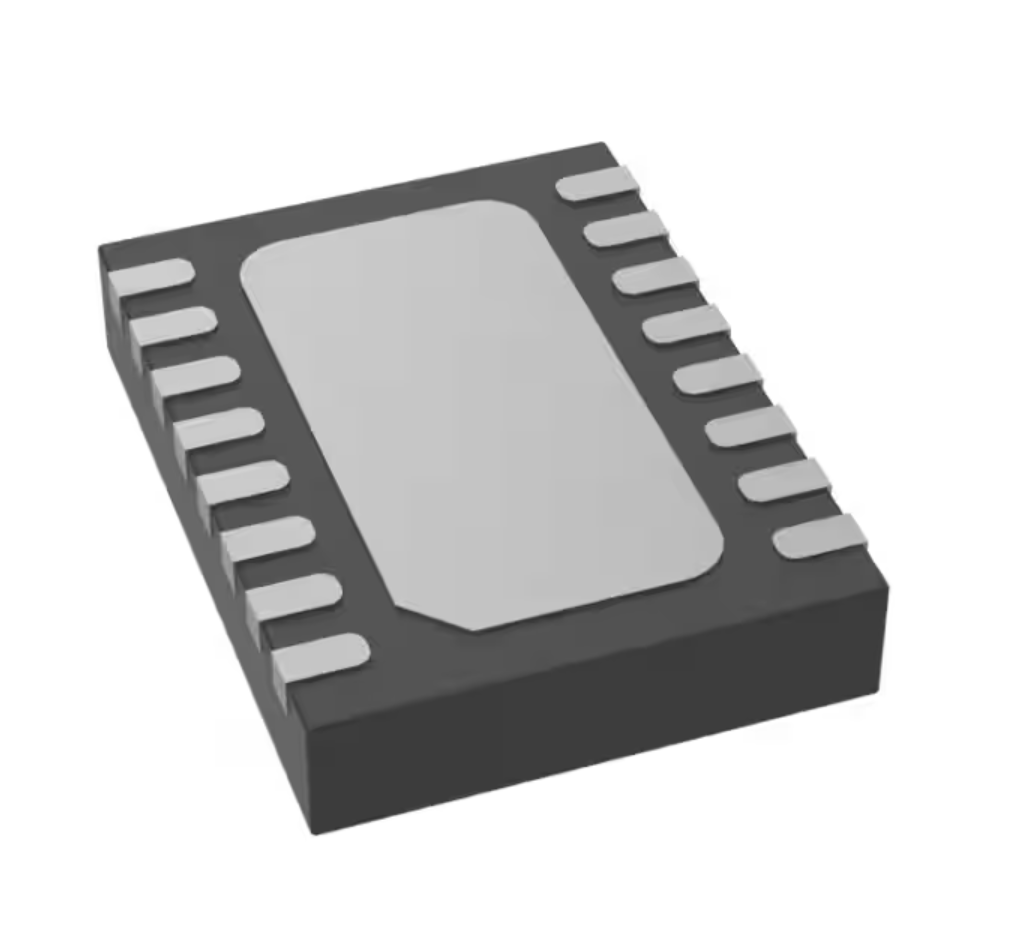

  • WS7140AD is available in DFN5x6-16L package.

主要特點(diǎn)


  • Operating voltage range: 4.5V to 28V

  • Load current limitation

  • Output short-circuit protection

  • Standby current <1.0μA

  • On-state resistance Typ=145mΩ

  • Thermal shutdown indication

  • OFF-state open-load detection

  • Overvoltage clamp

  • Undervoltage protection

  • Multiplexed analog feedback of: load curent with high precision proportional current mirror, Vcc supply voltage and TcHp device temperature

  • RoHS compliant and lead free

  • AEC-Q100 qualified


規(guī)格書

文檔名稱文檔描述                    下載
WS7140AD452KB


WS7140AD Datasheet_A0.2_EN.pdf
